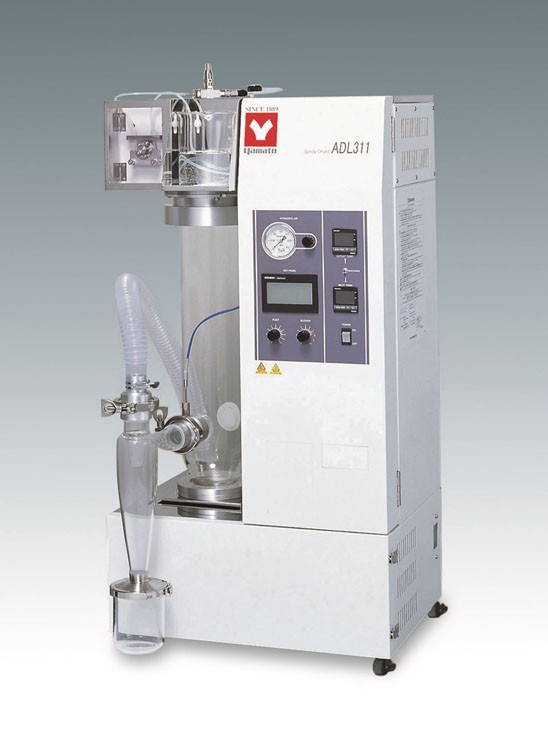

Spray Dryer (ADL311-A)
Easily grinds sample into fine powder with the spray drying system
Features of Spray Dryer (ADL311-A)
- Because this product applies heat on fine grain sample instantly and does not apply high temperature on dry fine powdersample itself, samples unstable to heat can be reliably changed into even fine powder
- Prepared fine powder will not be oxidized and contains minimum water and is contamination-free
- Drying is made directly from solution or suspension liquid sample into fine powder, which does not need pre- or post processes such as filtration, separation, or pulverization necessary in the conventional drying method and can be used without concern of contamination during a series of operations
Specifications
Item Code | 212737 |
---|---|
Model | ADL311-A |
Temp. adjusting unit setting range | 40 to 220deg.C (inlet temperature), 0 to 60deg.C (outlet temperature) |
Temperature adjusting accuracy | Inlet temperature±1deg.C |
Drying air amount adjusting range | 0〜0.7m3/min |
Spray air pressure adjusting range | 0〜0.3MPa |
Liquid sending pump flow rate range | 0〜26 ml/min |
Spray air line washing function | Spraying at the nozzle tip, manual pulse jet system |
External output | Inlet temperature, outlet temperature, temperature outlet (4-20 mA) |
Temperature adjusting device | PID digital temperature adjusting device |
Touch panel | Blower, heater, liquid sending pump, pulse jet switch, error display |
Control select switch | Inlet temperature, outlet temperature control switch (Outlet temp. control is conditional.) |
Temperature sensor | K-thermocouple |
Heater | 2.0 kW (at 200V) to 2.88 kW (at 240V) |
Liquid sending | Fixed amount peristaltic pump |
Spraying air pump | Spraying air compressor (sold separately) is used |
Service outlet | For stirrer: AC100V, MAX2A |
Suction blower | Bypass blower |
Filter | Suction filter, exhaust filter |
Recovery of solvent | - |
Spray nozzle cooling mechanism | Connector: nipple x 2, O.D.:φ10.5 mm |
Spray air connection diameter | Nipple diameter:φ7 mm |
Spray air pressure | Bourdon tube: 0.3 MPa |
Exhaust connecting diameter | φ50mm |
Safety function | Inlet/outlet temperature overheat, sample feed reverse rotation mechanism, over current electric leakage breaker, nozzle connection error |
External dimensions£¨W×D×H mm£© | 580×420×1125mm |
Power Source |
AC115/220VV AC115/220V Single phase |
Weight | 80kg |
Maintenance and warranty
- Conditions: temperature and humidity: 23 deg.C+/-5 deg.C, 65%RH+/-20% (no load)
- External dimensions do not include protrusions.
