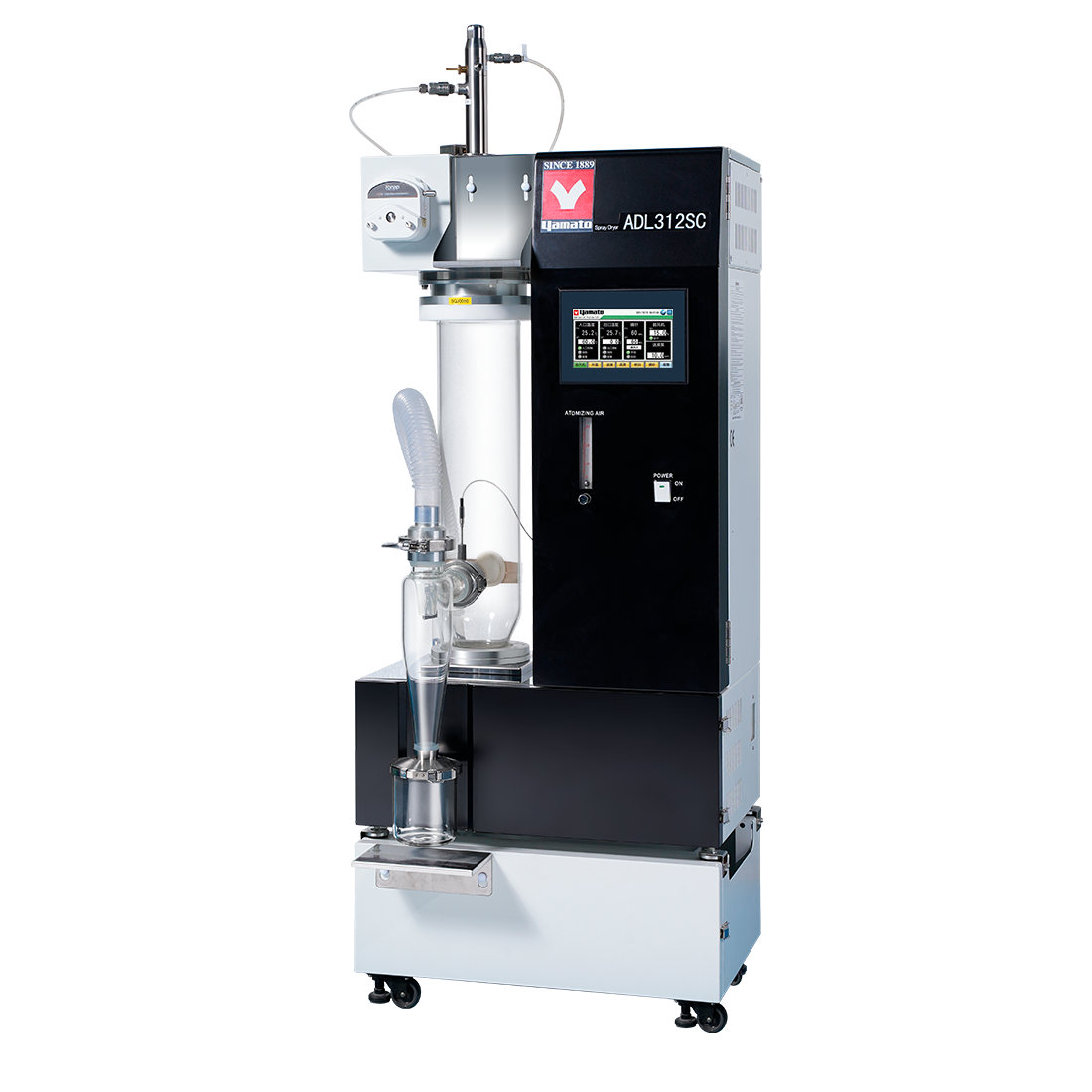

Spray Dryer (ADL312SC-A)
yamato | spray dryer | ADL311-A | ADL311S-A | ADL312SC-A | benchtop spray dryer | laboratory spray dryer | fast delivery | b2b scientific equipment ultra hard glass chamber | liquid to powder conversion | fine microparticle production | visual spray monitoring | moisture evaporation | dual fluid nozzle | compact footprint | easy cleaning design food tech r&d | pharmaceutical formulation | flavor encapsulation | university research lab | ceramic powder testing | lab manager | formulation scientist | b2b laboratory equipment malaysia
Product Summary
New intelligent spray dryer with multiple functions and easy operation.
-Features Adopting the method of instantaneously heating particle samples even if the samples with poor thermal stability are not easily oxidized, and get the uniform fine powder -The micro-powder after spraying has low moisture content, will not be oxidized, and no pollution -Products are directly dried into fine powder from solution or suspension samples without the need for filtration, separation, grinding, and other pre-processing and post-processing operations associated with traditional drying methods, avoiding contamination -It can be connected to the GAS411C organic solvent recovery device to handle samples containing organic solvents -The drying chamber and cyclone use a quick assembly and disassembly structure, further improving operability -A standard lift platform is equipped for installing and removing accessories -The device is equipped with a power socket for stirrers (200-230V~1A), convenient for stirring the suspension while sampling -Use a unique peristaltic sampling pump, nozzle cooling mechanism, pulse nozzle cleaning mechanism, anti-blockage needle, etc ,to achieve diversity and stability in spray conditions
| Attribute | Specification |
| Model | ADL312SC-A |
| Applicable samples | Water-soluble & organic solvent (requires organic solvent recovery device) |
| Moisture evaporation capacity | Max. 1500ml/h |
| Temp. adjusting unit setting range | 0~240¡æ (inlet temperature), 0~100¡æ (outlet temperature) |
| Temp. adjusting accuracy | Inlet temperature ±1¡æ |
| Drying air amount adjusting range | 0.2~0.9 m3/min |
| Spray air flow adjustment range | 0~30L/min |
| Spray pressure usage range | 0.3~0.6MPa |
| Nozzle cleaning function | Manual pulse air cleaning from the nozzle front end |
| External output | Inlet temperature, outlet temperature output (4~20mA) |
| Temp. regulator | Multi-PID control |
| Touch screen | Temperature adjustment, blower, heater, liquid feed pump, pulse air switch, automatic needle, alarm display, operation curve |
| Control switch | Selectable inlet temperature or outlet temperature control |
| Temp. sensor | PT100 thermistor |
| Heater | 3.2KW |
| Liquid feed pump | Duct type liquid feed pump |
| Filter | Suction filter, exhaust filter |
| Solvent recovery | Use a solvent recovery device (sold separately) |
| Spray nozzle cooling structure | Joints ×2, outer diameter Φ10.5mm (optional cooling water circulation device CF312L¡«B) |
| Spray air connection | Joint outer diameter, Φ7mm |
| Exhaust vent diameter | Φ50mm |
| Safety functions | Inlet/outlet temperature overheating, liquid feed pump reverse, overcurrent leakage protection, nozzle connection abnormality |
| External dimensions | W580 × D420 × H1125mm |
| Weight | Approx. 96kg |
| Power Source | 220-230V¡« 50/60Hz 17-20A |
| Accessories | Liquid feed hose ×2, exhaust hose (with 1 hose clamp) ×1, exhaust conversion joint, outlet temperature sensor, fuse, anti-static connection line, intake hose 5m, stand components, protective cover (COV20), GF301C glass assembly, exhaust joint, air tube A/B, manual |
