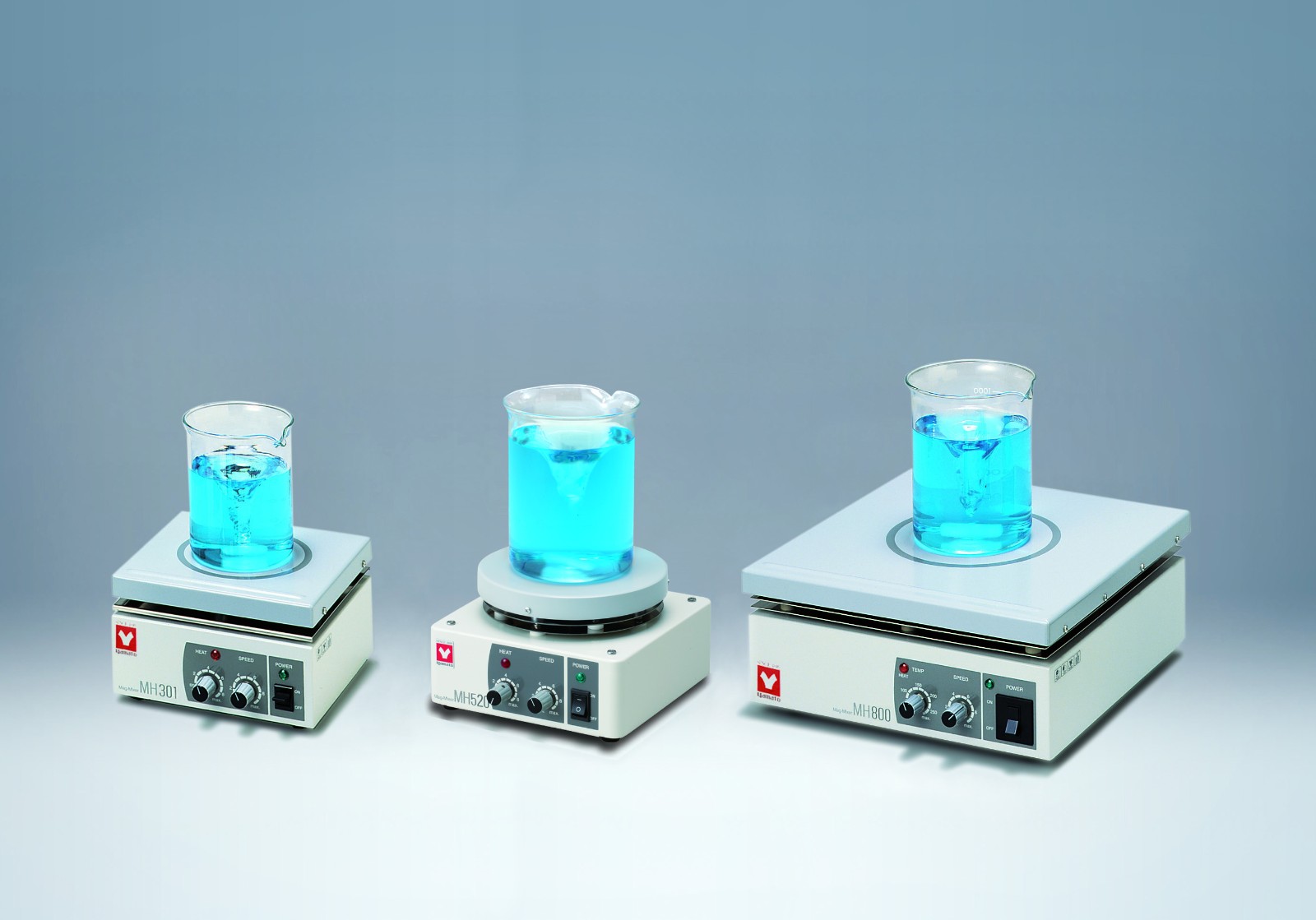

Magnetic Stirrer with Hot Plate (MH800)
Strong stirrer with ceramic coating material
Features of Magnetic Stirrer with Hot Plate (MH800)
- Hot plate is made of chemical resistant, heat conductive aluminum with ceramic coating
- Stirrable for high viscosity sample
- Volume knob type temperature control
Specifications
| Item Code | 231309 |
|---|---|
| Model | MH800 |
| Plate material | Aluminum with ceramic coating |
| Stirring capacity | 200 to 10000ml |
| Stirring rate | 100 to 1400rpm |
| Heater | 1000W |
| Temp. control | Triac input control type |
| Hot plate temp. | Max.250°C (Set by volume with OFF) |
| Motor | AC motor, condenser electronic control 3W |
| Accessory | Stirrer bar 40mm 1pc. |
| Internal dimensions（W×D mm） | 299×285mm |
| External dimensions（W×D×H mm） | 309×315×151mm |
| Power Source |
AC115 / 220V Single-phase with step-down transformer |
| Weight | 6.7kg |
Maintenance and warranty
Conditions: temperature and humidity: 23 deg.C+/-5 deg.C, 65%RH+/-20% (no load)
External dimensions do not include protrusions.
