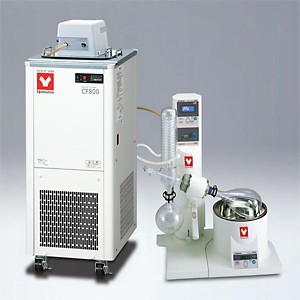

Cooling Water Circulator (CF800P)
Cooling Water Circulator (CF800P) CF Series Cooling Water Circulator (Externally Closed Circulation) Water Circulator Selangor, Malaysia, Kuala Lumpur (KL), Puchong Supplier, Distributor, Supply, Supplies | Renetech Sdn Bhd
Item Code 221579
Model CF800P
Circulation type Closed circulation
Operating temp. range −20°ś〜 Room Temperature
Cooling capacity 1050W (903Kcal/h) at 10°ś, 910W (782Kcal/h) at 0°ś, 670W (576Kcal/h) at −10°ś
Temp. control Refrigerator ON-OFF control
Temp. sensor T-Thermocouple
Temp. setting / Display Digital setting / display
Refrigerator Air cooling, 600W
Refrigerant R404A
Circulation pump Magnetic pump
Circulation capacity (50/60Hz), Max. flow rate, Pump max. flow rate 10.0 / 11.8 L / min (pump capacity: 22.0 / 22.0 L / min)
Circulation capacity (50/60Hz), Max. lift, Pump max. lift 10.3 / 14.3 m (pump capacity: 10.0 / 13.5 m)
Cooling Coil Nickel plated copper
External circulation nozzle O.D. 10.5mm for in and out with hose nipple
Safety device Electric leakage breaker, Refrigerator over load relay, Pump thermal protector, Refrigerator-protection delay timer
Other functions Drain, over flow
Water bath material SUS304
Water bath capacity Approx. 16L (Liquid amount 14L)
Accessories x1 circulating hose (3m), x2 wire clamp, x1 drain hose (0.5m), x1 overflow cap, x2 intake mouth rubber cap, x1 vacuum hose (inner diameter φ 6 mm × length 2 m)
Internal dimensions£®φ×H mm£© φ300×235mm
External dimensions£®W×D×H mm£© 350×480×1007mm
Power Source 220V 7A
Single-phase with step down transformer
Weight 71kg
