Water Bath (Precision Constant Temp.) (BK300)
Water Bath (Precision Constant Temp.) (BK300) BK/BA Series Water Bath (Constant temp.) Constant temperature bath Selangor, Malaysia, Kuala Lumpur (KL), Puchong Supplier, Distributor, Supply, Supplies | Renetech Sdn Bhd Temperature Rising Curve Control panel

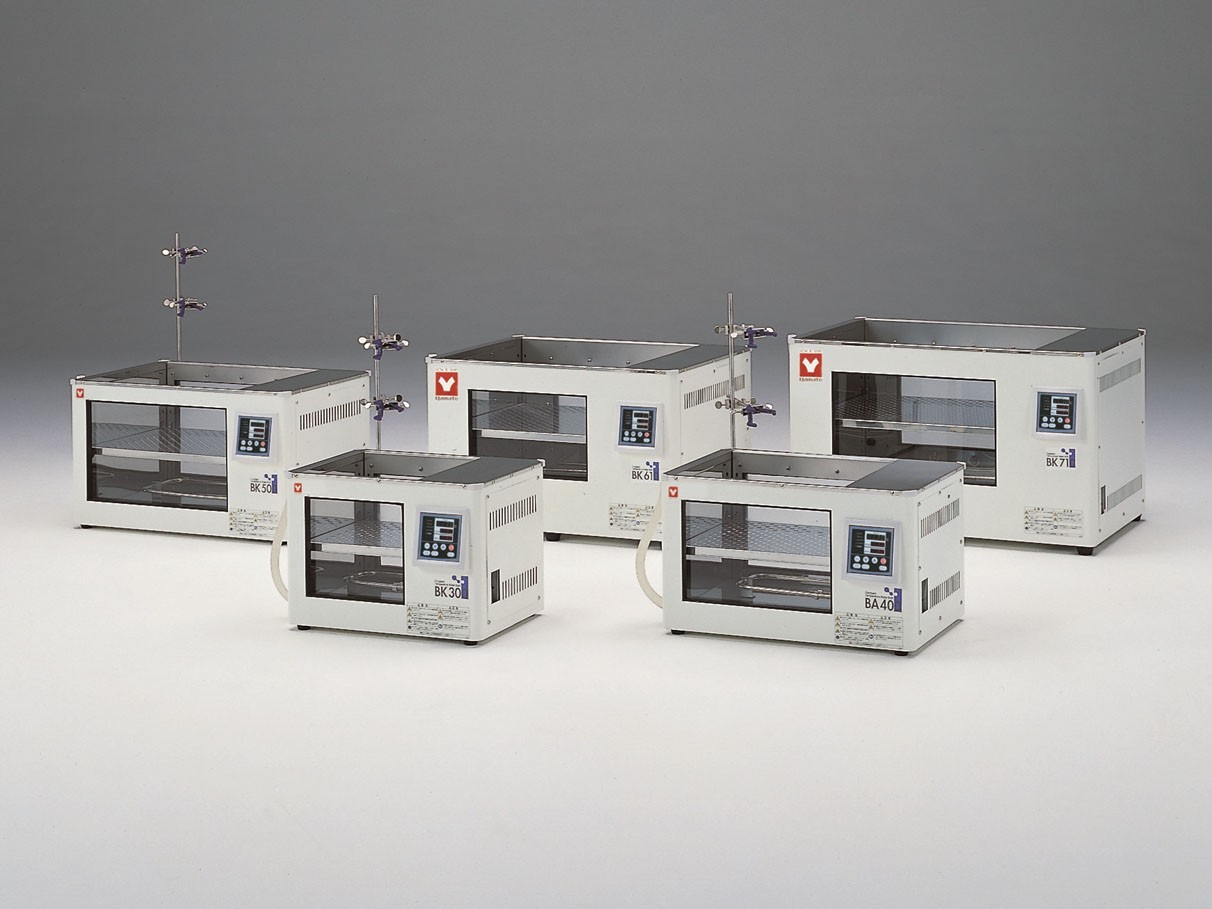

Constant temperature water bath with glass window. Can handle 27 ~ 144 L

Features of Water Bath (Precision Constant Temp.) (BK300)

Constant temperature water bath
Fixed Temperature Operation.

Feature
In addition to BK Series function, BA Seroes adopted controller with program operation function (1 pattern 30 steps or 2 patterns 15 steps).

Feature
Tank Capacity : 27L, 42L, 70L, 109L, 144L.

Feature
Extremely high degree of temperature adjustment precision achieved by adopting high-precision thermostat and circulation pump.

Feature
Digital display setting and indicated value of temperature and time.

Feature
Equipped with observation window.

Feature
Optional items include cooling coil, top cover, mounting rack, and viscosity meter support.

Specifications
Item Code 221144
Model BK300
Stirring Method Stir by pump
Operating Temp. Range RT+5~80°C
Temperature control accuracy ±0.02~±0.07°C
Temperature distribution accuracy ±0.3°C
Max. temp. reaching time Approx. 120min.
Interior Material Stainless Steel and Glass
Temp. Controller PID control by microprocessor (BK: Fixed temperature operation, BA: Fixed temperature and program operation, 1 pattern 30 steps or 2 pattern 15 steps)
Sensor W sensor: Pt resistance thermometer, Pt 100Ω(temp. controller) + K thermocouple (overheat protector)
Temp. Setting / Display Method Digital setting / Display
Overheat Protector ON / OFF by Microprocessor
Heater (SUS316) 1.3kW
Stirring System (Magnet pump) 6W
Timer 1min.~99hrs. 59min. to 999hrs. 50mins, Digital Setting, Auto Start, Auto Stop, Quick Auto Stop
Safety Device Self-Diagnotic Functions (Heater Disconnection, SSR Short Circuit, Abnormal Sensor, Over Current), Electric Leakage Breaker, Over Heat Protector
Window Dimensions (W×H mm) 240×215
Shelf Pitch 30mm
Number of Plates 5pcs
Drain Hose φ15×20mm
Included Accessories Shelf plate 1pc., Clamp 2pcs., Stand 1pc., Clamp Holder 2pcs., Tube Connector 1pc., Drainage Cap 1pc.
Optional Vessel Installing Holder, Viscometer Holder, External Circulating Pump, Cooling Coil, Top Cover of Water Bath
Internal dimensions£¨W×D×H mm£© 300×300×300mm
External dimensions£¨W×D×H mm£© 490×360×367mm
Remarks(dimensions) Bath Capacity Appox. 27L
Power Source AC220V 7A
Single phase
Weight 19kg

Maintenance and warranty
Conditions: temperature and humidity: 23 deg.C+/-5 deg.C, 65%RH+/-20% (no load)
External dimensions do not include protrusions.
