Immersion Constant Temperature Device (BF601)
Multifunctional Constant Temperature Device
Features of Immersion Constant Temperature Devices (BF601)
Product Features
Immersion Type Water Bath’s Temp. Controller.
Product Features
Various Functions from ''Fixed Temp. Operation'' to ''Programmable Operation''.
Product Features
Data Output, External Communication, etc. are available as Option.
Product Features
Testing Bath BY100 (Polypropylene, for water) is included as standard.
Specifications
Specifications
| Item Code | 221811 |
|---|---|
| Model | BF601 |
| Operating Temp.Range | Room Temp. +5 to 180deg.C |
| Temp. Setting Range | 0 to 200deg.C |
| Temp. Control Accuracy | ±0.05 to 0.2deg.C (at40/180deg.C) |
| Stirrer | Propeller Stirring |
| Heater | Stainless Pipe Heater 1.2kW |
| Temp. Control System | PID Control by Micro Computer |

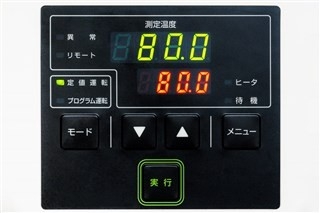

| Temp. Setting | Digital Setting by Key, Digital Display by Green LED |
| Temp. Display | Min. Digit Indication:1deg.C, Indicated on Main Indicator(Sub-indicator: Indicate Setting Temp.) |
| Timer | 1min. to 99h.59min. or 100h. to 999h. |
| Timer Resolution | 1min. or 1h |
| Operating Function | Fixed Operation: Setting Temp., Quick Auto Stop Program Operation: 1 to 3 Pattern, (Max. 10 Segment Pattern) Repeat Operation: Auto Start |
| Additional Function | Temp. Pre-setting (Memory/Recall 10 Temp.), Timer (to 49,999h.), Key Lock, Calibration offset, Power failure recovery mode |
| Heater Circuit Control | Triac Zero-cross Type |
| Sensor | Platinum resistance temperature detector (Pt100Ω) |
| Safety Countermeasure | Shelf Diagnosis Function (Automatic Overheat Prevention, Abnormal Temp. Sensor, Heater, Triac, Relay), Circuit Protector, Float Type Empty Boiling Preventor, Independent Overheat Prevention Device |
| Clamp Available Thickness | Max. 35mm |
| Accessories | Testing Bath Model BY100 (Polypropylene) |
| External Output Terminal | ‐ |
| External dimensions（W×D×H mm） | 140×138×312mm |
| Power Source |
AC220V 6A Single-phase with step down transformer |
| Weight | 4kg |
Maintenance and warranty
Conditions: temperature and humidity: 23 deg.C+/-5 deg.C, 65%RH+/-20% (no load)
External dimensions do not include protrusions.
