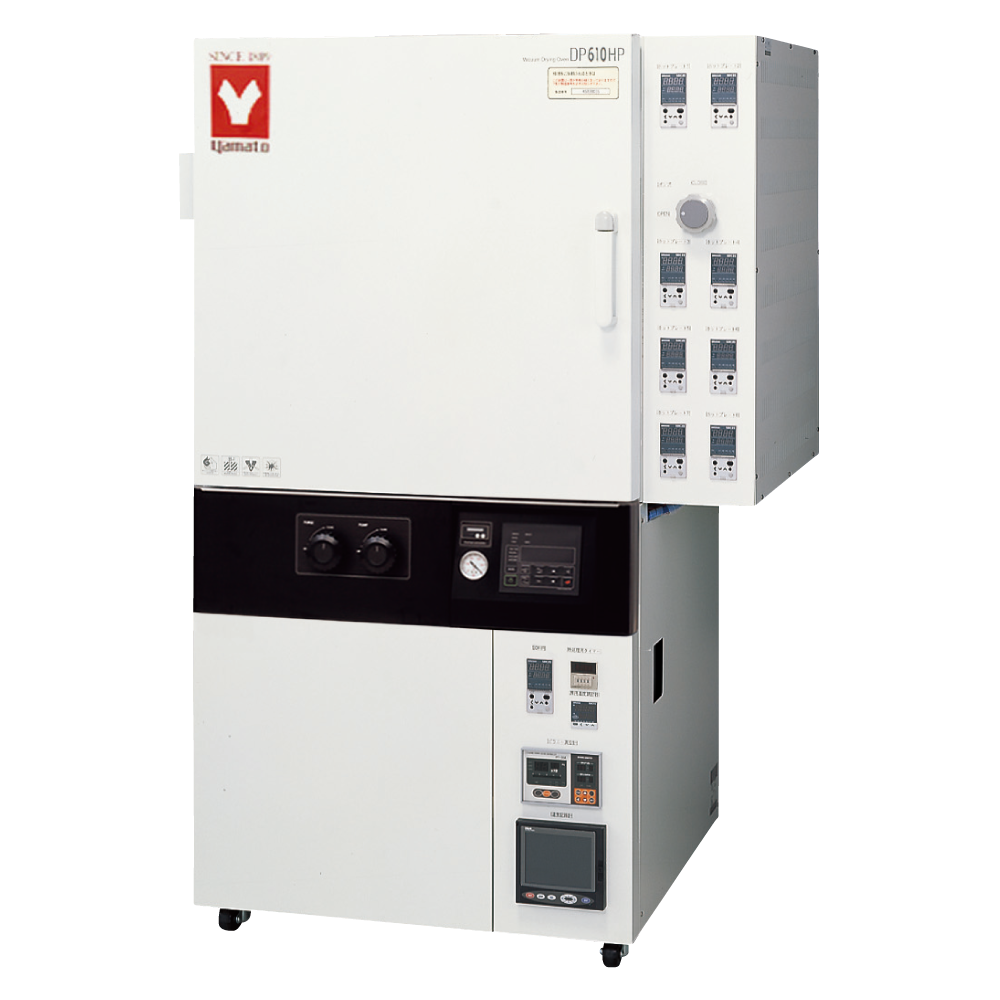

Vacuum Drying Oven, Shelf heater type (DP610HP)
Specifications
| Item Code | DP610HP |
|---|---|
| Model | DP610HP |
| Method | Decompression chamber & shelf heating |
| Operating temperature range | 40 to 200 degree |
| Operating pressure range | 101 to 0.1kPa |
| Interial material | Stainless steel |
| External material | Chrome-free electric galvanized steel plate with baked-on melamine resin finish |
| Door | Single swing door |
| Door packing | Viton packing |
| Heat insulating material | Rock wool |
| Heating method | Shelf heating + rediation heating |

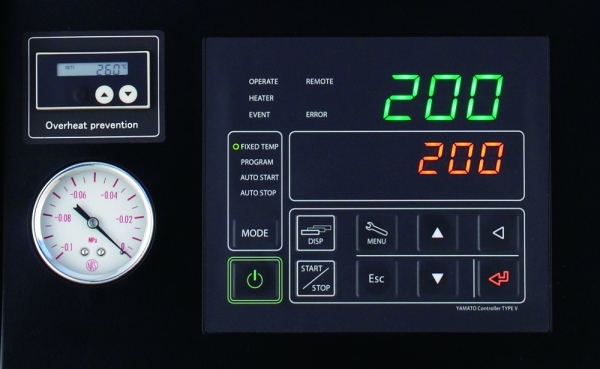

| Operation function | Fixed temperature operation, auto-start operation, auto-stop operation, quick auto-stop operation, Program operation |
| Heater circuit control | Triac zero-cross (shelf indivisual) control |
| Additional functions | Temperature recorder, pirani vacuum gauge, signal tower, buzzer, timer for heat treatment |
| Safety contermeasures | Self diagnostin functions, key lock function, independent oberheating prevention, electric leakage breaker |
| Shelf | Pipe heater 0.9kW x 8, total 7.2kW |
| Shelf dimentions | 590W x 550D x 25H mm |
| Internal dimensions（W×D×H mm） | 600×600×600mm |
| External dimensions（W×D×H mm） | 1020×820×1650mm |
| Power Source |
AC200V 37A Three phase 50/60Hz |
| Weight | 400kg |
| Price | - |
