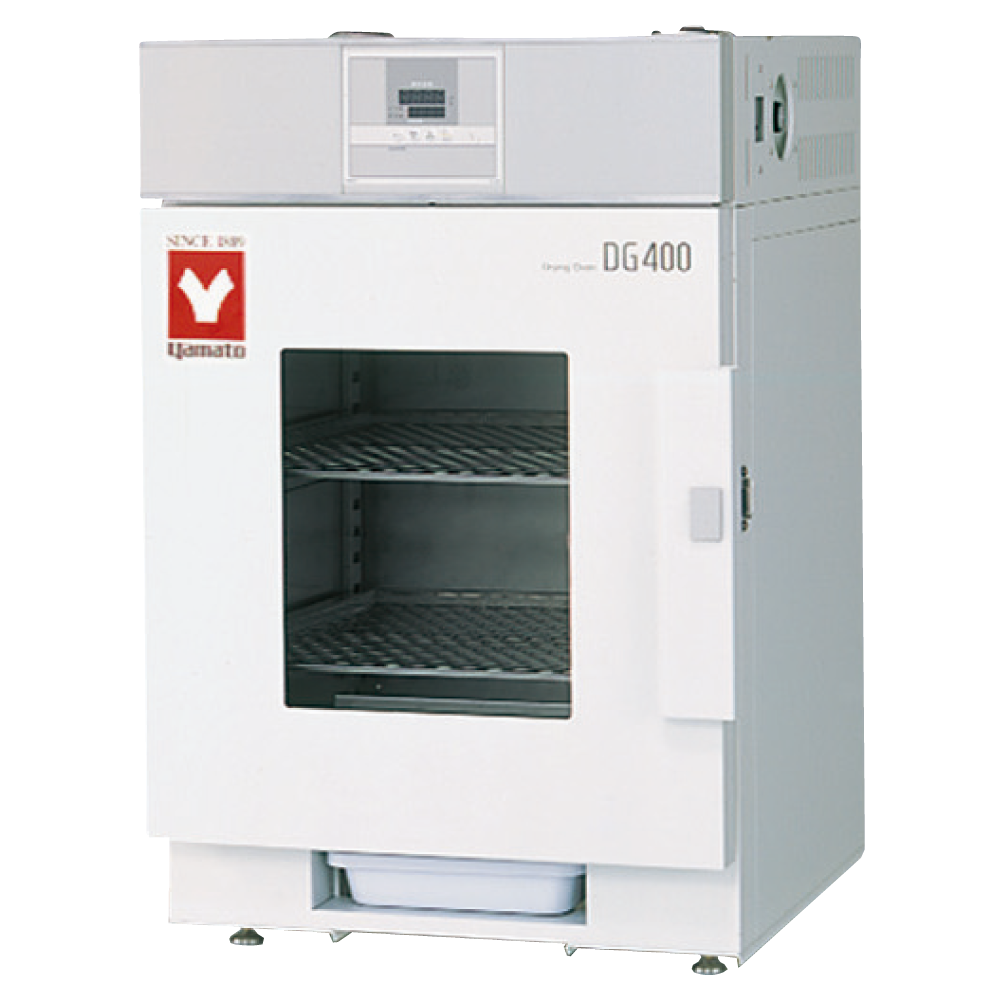

Glassware Drying Oven (DG400) - Laboratory & Industrial Drying Oven
Lab Drying Oven | Industrial Curing Oven | Industrial Drying Ovens | Laboratory Drying Oven | Lab aging oven | Laboratory oven | Drying oven for laboratory | Laboratory equipment supplier Malaysia | Memmert oven | Binder oven | thermo fisher lab oven | Carbolite oven | Lab companion oven yamato | labware drying oven | DG410C | DG450C | DG810C | DG850C | natural convection oven | fast delivery | 70¡æ labware dryer | glassware drying large observation window | water collection tray | forced exhaust fan | air intake filter | 15W sterilization lamp | PID temperature control | self-diagnostic safety | independent overheating preventer | stainless steel interior advanced r&d laboratory | glassware drying | lab instrument storage | medical testing lab | clean drying applications | research engineer | lab manager | b2b scientific equipment malaysia | labware scientific oven
Easy-operational and highly acclaimed Glassware drying oven.
Features of Glassware Drying Oven (DG400)
- Use a big observation window for easy observation.
- Many labwares can be dried at one time which can be safe kept or used after drying.
- The interior and exterior use twofold structure of high-insulative effect.
- The chamber heater is stainless steel heating pipe with a water pan at the bottom, use at ease even for dripping labwares.
- The interior is made of stainless steel, easy to keep clean.
- On the basis of DG410C and DG810C, DG450C and
-
DG850C add multiple functions. Install a suction filter at air suction port, and set forced exhaust fan at the side of exhaust port. Moreover, it's equipped with standard sterilamp, fast and clean drying.
Safety
Self-diagnosis circuit (abnormal temp. input), power outage compensation, deviation correction, overcurrent ELB, independent overheat protector, etc.
Specifications
Specifications
| Item Code | 211992 |
|---|---|
| Model | DG400 |
| Method | Natural convection |
| Operating temp. range | RT£«5 to 70¡æ |
| Interior material | Stainless steel |
| Exterior | Cold rolled steel plate with chemical proofing coating |
| Heater | Stainless steel pipe heater |
| Heater | 1.0kW |
| Observation window (W×Hmm) | 250×300 |
| Exhaust port | I.D. 34mm×2 |
| Suction port | I.D. 30mm×2 |
| Germicidal lamp | — |
| Temp. control | PID control |
| Temp. setting | Use specialized function menu key and UP/DOWN key to set |
| Temp. display | Measured temp. display: Green 4-digit LED digital display |
| Temp. display | Setting temp. display: Red 4-digit LED digital display |
| Timer | 1min-99 hr 59 min and 100 hr-999 hr 50 min (Attached with timing wait function) |
| Operation function | Fixed temp., Quick auto stop, Auto start, Auto stop operation |
| Additional function | Deviation correction, Key lock, Power outage compensation |
| Heater circuit control | SSR driving |
| Sensor | Temp. controller: K thermocouple , Overheat protection: Liquid-expansion temp. controller |
| Safety device | Self-diagnosis (Abnormal temp. sensing, Auto overheat prevention, SSR short circuit), Key lock, Independent overheat protector, Overcurrent ELB |
| Shelf plate with standard load | 15kg / piece |
| Shelf support step number/pitch | 10 steps / 30mm |
| Shelf plate | Stainless punching metal |
| Shelf rest | 2 pcs |
| Shelf bracket | 4 pcs |
| Water pan | 1 pc |
| Optional Stand | ON61C |
| Optional Others | Shelf plate (1 plate with 2 rests) |
| Internal dimensions£¨W×D×H mm£© | 450×450×450mm |
| External dimensions£¨W×D×H mm£© | 504×562×788mm |
| Remarks(dimensions) | 92L |
| Power Source |
AC220V 5A Single-phase |
| Weight | 45kg |
Maintenance and warranty
Conditions: temperature and humidity: 23 deg.C+/-5 deg.C, 65%RH+/-20% (no load)
External dimensions do not include protrusions.
