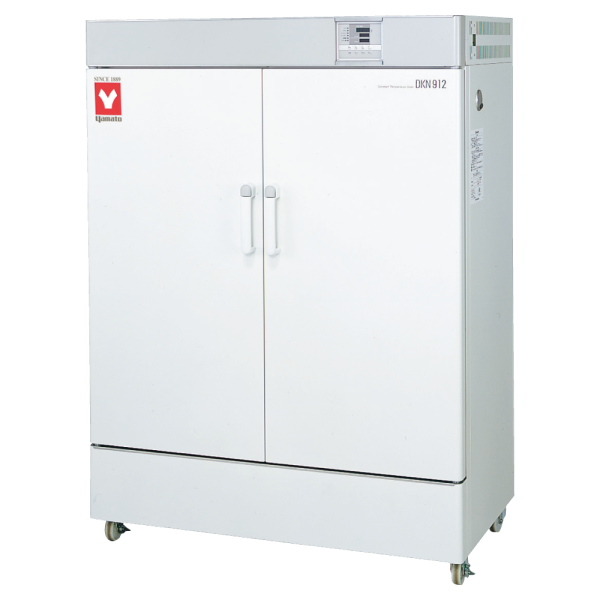

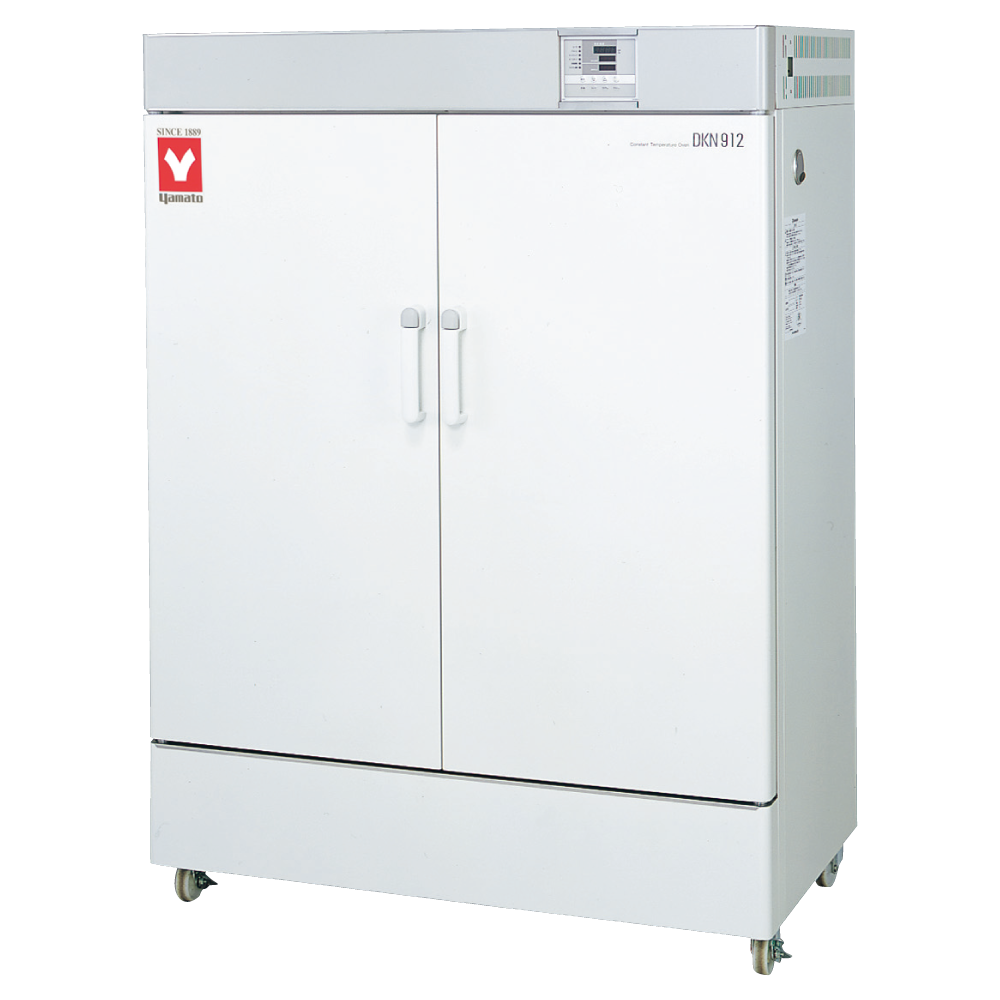

Forced Convection Oven (DKN912) - Laboratory & Industrial Drying Oven
yamato | programmable forced convection oven | DKN312C | DKN412C | DKN612C | DKN812C | DKN912C | best-selling lab oven | fast delivery | 260°C programmable oven 30-step program controller | 3-pattern repeat function | observation window | superior temperature accuracy | digital PID microprocessor | calibration off-set | self-diagnostic safety | key lock function | overcurrent leakage protection advanced r&d laboratory | complex thermal profiling | materials testing | electronic component baking | aerospace testing | lab manager | procurement manager | b2b scientific equipment malaysia | programmable drying oven Lab Drying Oven | Industrial Curing Oven | Industrial Drying Ovens | Laboratory Drying Oven | Lab aging oven | Laboratory oven | Drying oven for laboratory | Laboratory equipment supplier Malaysia | Memmert oven | Binder oven | thermo fisher lab oven | Carbolite oven | Lab companion oven
Standard ''Best Seller'' ovens - Fully programmable
Features of Forced Convection Oven (DKN912)
- Standard forced air convection ovens
- Standard forced air convection ovens are programmable and come with extended functions and safety features.
- Best seller based on excellent performance & affordability
- Superior temperature accuracy

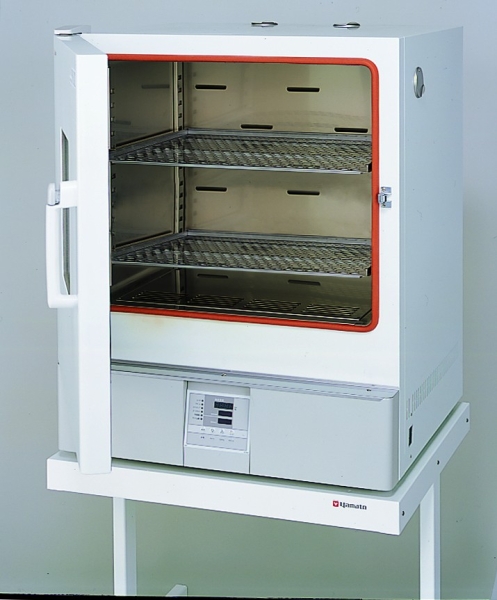

- DKN302/402/602/612 come with observation windows
- Programmable PID controller for easy program settings 30-step, 3-pattern program controller with repeat functions
- Fixed setting, programmed, Quick Auto stop, Auto stop, and Auto start operating modes with easy control capabilities
- Increased safety and Self-diagnostic function
- Over-heating prevention and calibration off-set are possible with auxiliary functions
- Easy to use and maintain
-

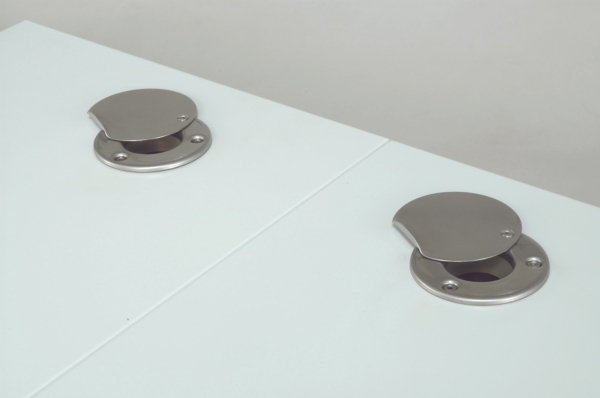

Built in exhaust ports
Safety features
Self diagnosis functions (Temperature sensor abnormal, Heater disconnection, SSR-short) Automatic overheating prevention, Electric leakage breaker with over current protection, Key lock function
Specifications
Specifications
| Item Code | 212875 |
|---|---|
| Model | DKN912 |

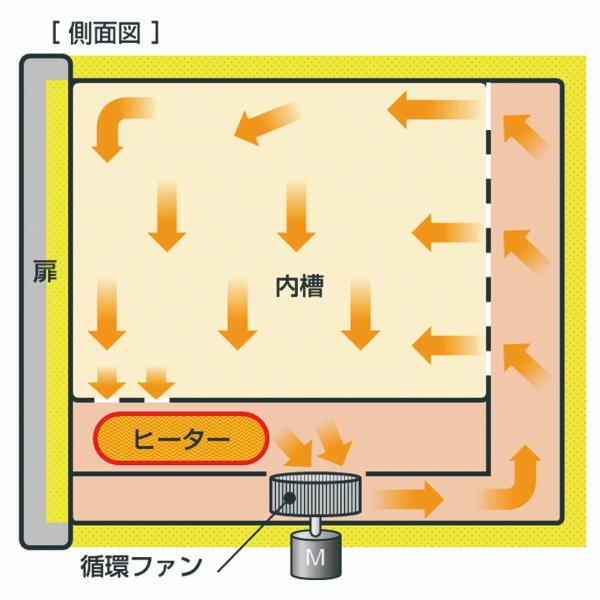

| Circulation method | Forced air circulation |
| Operating temp. range | RT +10°C to 210°C |
| Temp. adjustment accuracy | ±1℃（at 210℃） |
| Temp. distribution accuracy | ±2.5℃（at 210℃） |
| Max. temp. reaching time | Approx. 60min. |
| Interior/Exterior material | Stainless steel / Cold rolled steel plate with melamine resin baking finish |
| Heat insulating material | Glass wool |
| Heater | Stainless pipe heater |
| Heater | 1.8kW x 2 |
| Fan Type / Fan Motor | 2pc / 10W |

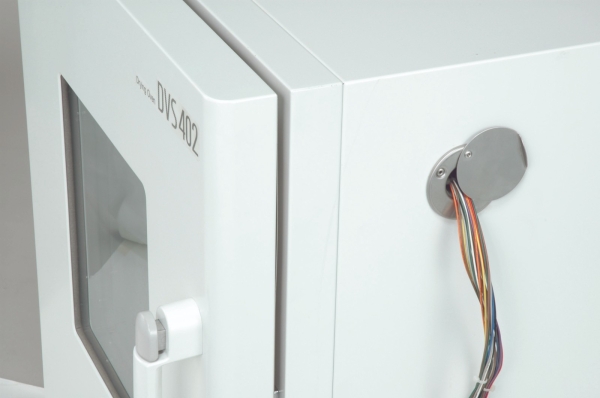

| Cable hole | 30mm I.D. (on the right side) 1pc. |
| Exhaust port | 30mm I.D. x 2 (the back) |
| Observation window | None |
| Temp. controller | 3 patterns program controller, PID control by microprocessor |
| Temp. setting method | Digital setting by UP/DOWN key |
| Temp. display | Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function |
| Operation function | Fixed temperature operation, Program operation, Auto start, Quick Auto-stop |
| Program mode | Program operation : 3 patterns, 30 steps(30 steps×1, 15 steps×2, 10 steps×3) Pattern repeat function |
| Additional functions | Calibration off-set function, Key lock, Uninterruptible power for memory |
| Heater circuit control | SSR control |
| Sensor | K-thermocouple |
| Safety device | Self diagnosis functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection |
| Shelf plate with standard load | ~15kg/piece |
| Shelf support step number/pitch | 29 steps x 2 / 30mm |
| Shelf plate | Stainless steel, 1pc on the bottom screwed (DKN912C, 2 pcs) |
| Shelf plate / support | 8 pcs. / 16 pcs. |
| Internal dimensions（W×D×H mm） | 1070×500×1000mm |

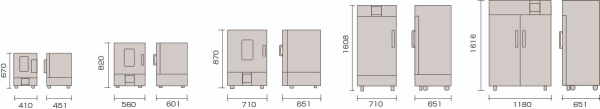

| External dimensions（W×D×H mm） | 1180×651×1616mm |
| Remarks(dimensions) | 535L |
| Power Source |
AC220V 18A Single-phase |
| Weight | 190kg |
Maintenance and warranty
Conditions: temperature and humidity: 23 deg.C+/-5 deg.C, 65%RH+/-20% (no load)
External dimensions do not include protrusions.
